Diffusore sospeso passivo 40W 6.5" woofer 1" tweeter IP44 - DAP D6615W
Stock no. D6615W
Price for 1 unit
113,61 € (VAT incl.)
93,12 € + IVA
Quantity

DAP
Codice D6590
Codice EAN 8717748370662
Price for 1 unit
47,60 €
39,02 € + IVA

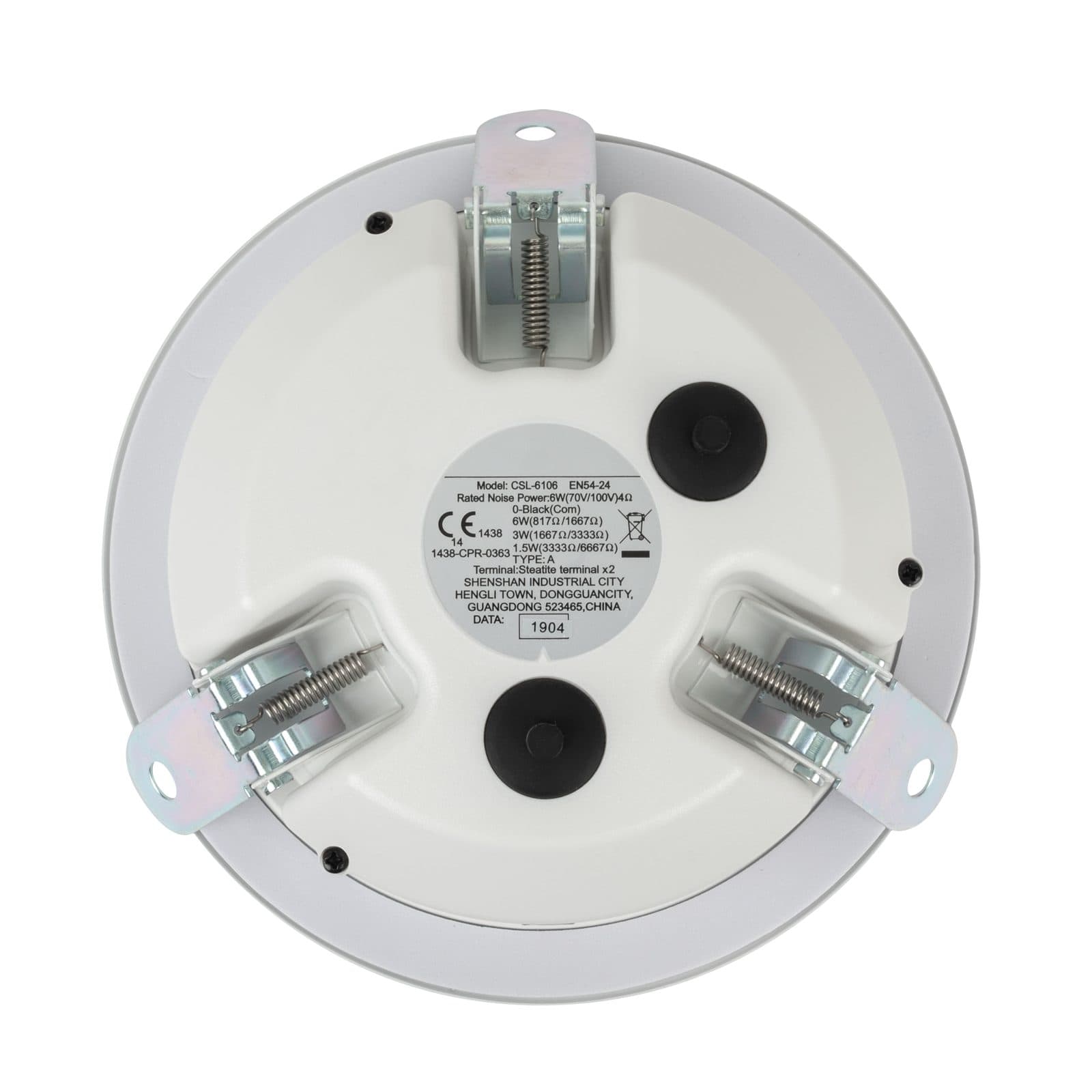

The DAP CST-6506 is a 6-inch passive evacuation ceiling speaker for buildings such as an airport, hotel, school or office. The white 6-watt speaker has a EN 54-24 certificate and can therefore be used in all of Europe. It is suitable for 100 V installations. The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer.
The CST-6506 has a strong metal housing and grille that can be mounted easily in a Ø 164 mm hole due to its integrated clamps.
| Peak Input Power | 6 W |
|---|---|
| Transformer | 100 V |
| Line Transformer Taps | 1.5 / 3 / 6 W |
| Passive Input Connection | Open End |
| Speaker System | Coaxial |
| Speaker Sensitivity (1 W/1 m) | 92 dB |
| Frequency Response Minimum | 110 Hz |
| Frequency Response Maximum | 20000 Hz |
| Woofer Diameter | 6.5" |
| Height (mm) | 74 mm |
| Width (mm) | 198 mm |
| Length (mm) | 198 mm |
| Weight | 0.9 kg |
| IP Rating | IP40 |
| Mounting Size | Ø164mm |
| Fire Retardant | Yes |
