Name: Passive Speaker - DAP D6592B
Brand: DAP
SKU: D6592B
Price: 9.59 EUR
Availability: InStock

Descrizione

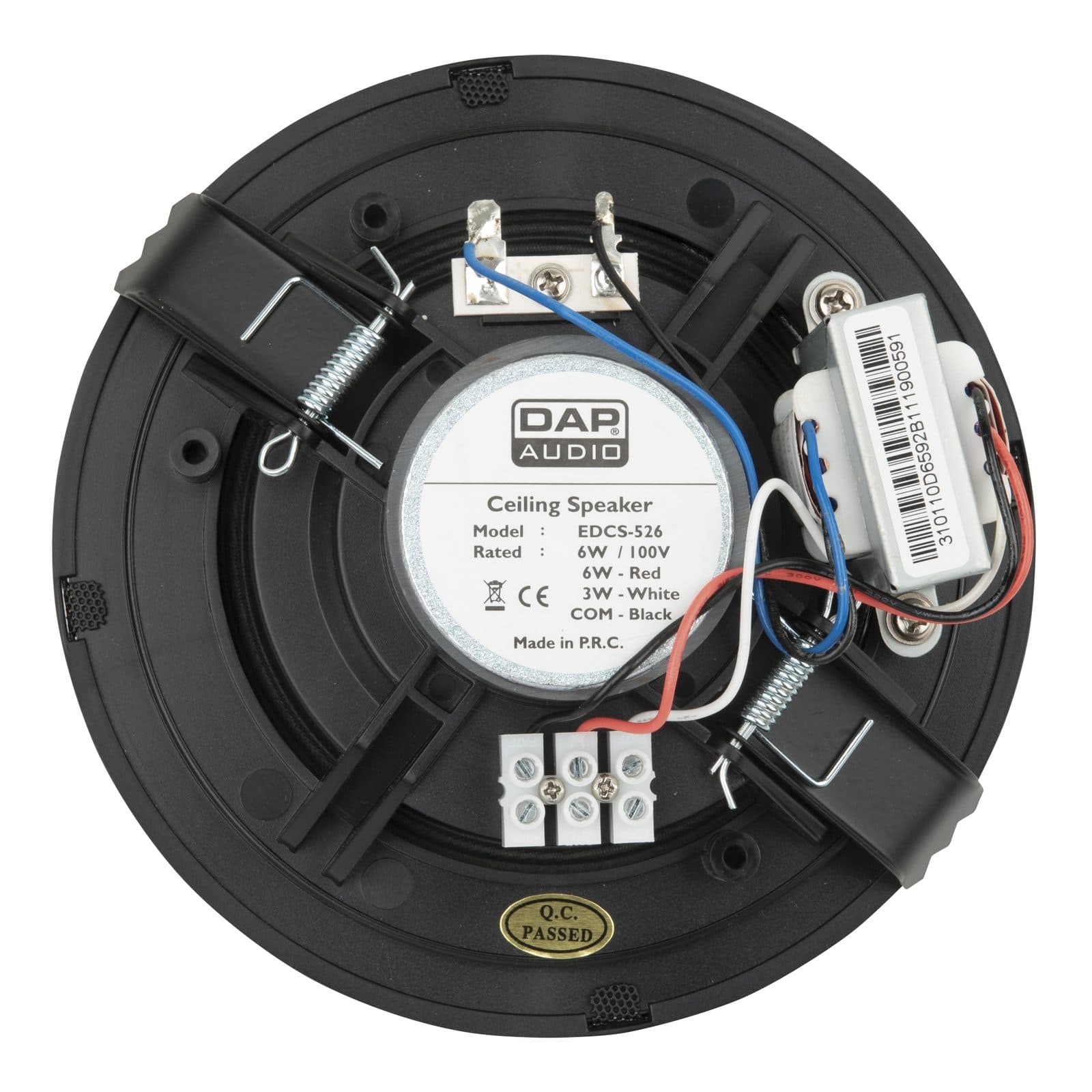

The DAP EDCS-526 is a 5-inch recessed ceiling speaker suitable for 100 V installations. The volume can be adapted to match the volume of other components in the system using the multiple power taps on the transformer. The DAP EDCS series combine a good sound quality and stylish design in an affordable solution for commercial audio installations.

The EDCS-526 is available in both white and black enclosures and are the right tool for any installation audio job. It has a small Ø 145 mm mounting size and mounting is easy due to the integrated clamp.

6 W peak power - 100 V
Two power taps (3 and 6 W)
Modern and stylish ABS design with integrated mounting clamp
Available in either black or white

Peak Input Power	6 W
Transformer	100 V
Line Transformer Taps	3 / 6 W
Passive Input Connection	Open End
Speaker System	Coaxial
Speaker Sensitivity (1 W/1 m)	93 dB
Speaker Impedance	8 Ω
Maximum SPL at 1 m	97 dB
Frequency Response Minimum	100 Hz
Frequency Response Maximum	15000 Hz
Woofer Diameter	5"
Height (mm)	54 mm
Width (mm)	160 mm
Length (mm)	160 mm
Weight	0.5 kg
IP Rating	IP20 (indoor use only)
Housing	ABS
Mounting Size	Ø 145 mm
Colour	Black
Mounting Options	Ceiling
