House Light LED Fresnel RGBALC - Showtec 33150
Stock no. 33150
Price for 1 unit
690,56 € (VAT incl.)
566,03 € + IVA
Quantity

SHOWTEC
Codice 34070
Codice EAN 8717748620231
Price for 1 unit
546,96 €
448,33 € + IVA

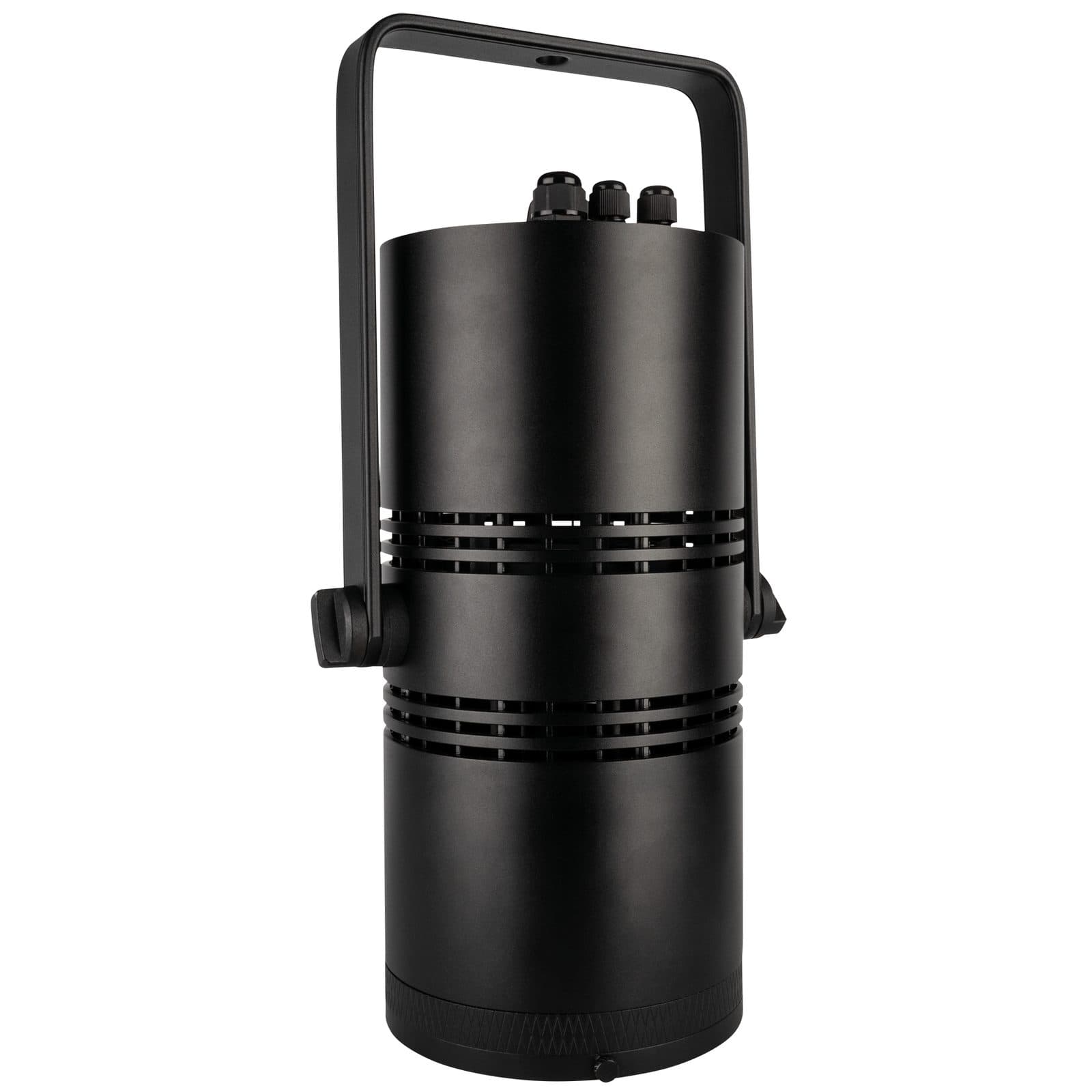

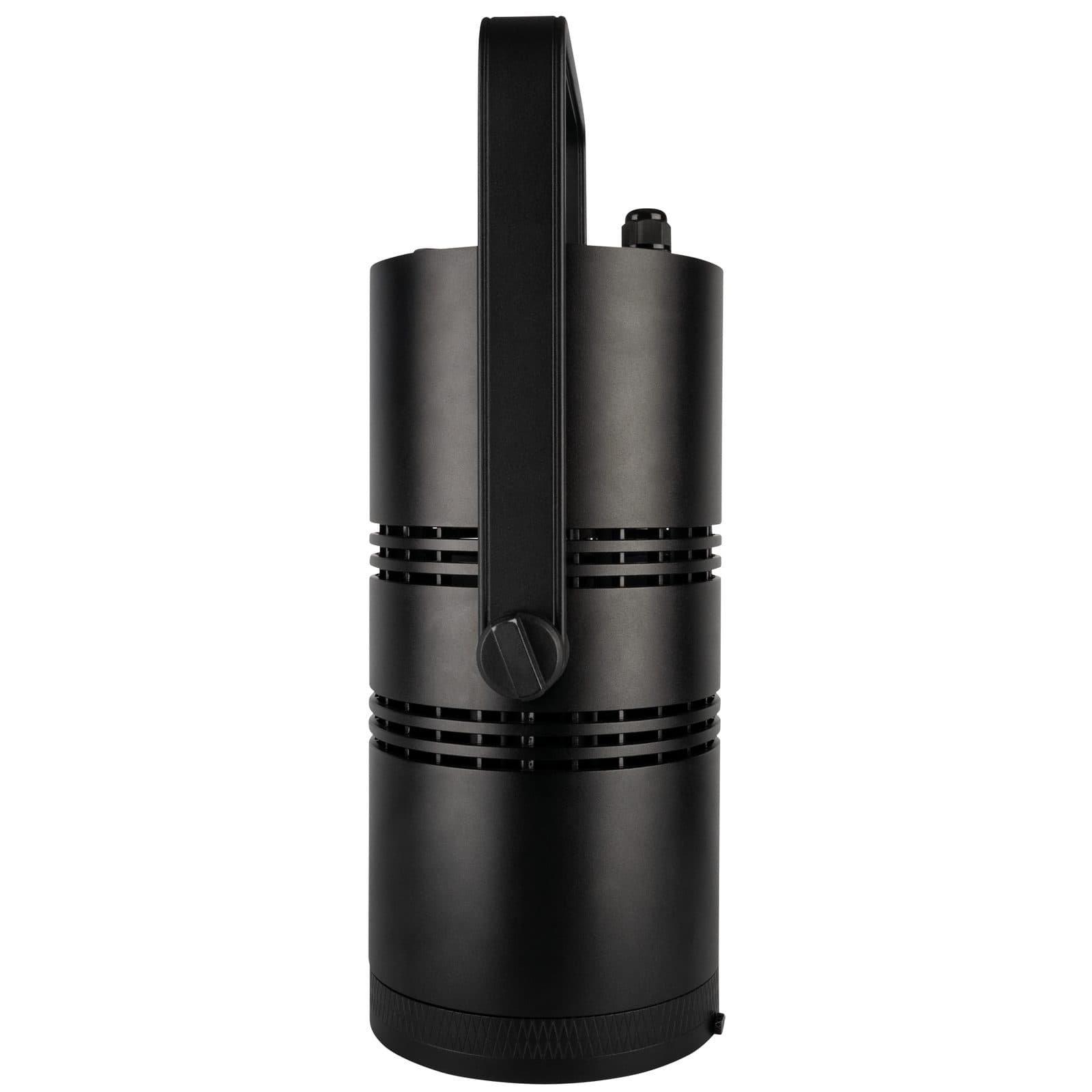

The Showtec ACT House Light 100 W RGBAL is a versatile lighting fixture designed for auditoriums, halls and other venues where reliable, high‑quality room lighting is required. Thanks to its compact design, colour capabilities and connection options, it can be used not only as a traditional house light, but also as a pendant fixture or even as a front light.
Like the other fixtures in the ACT series, it features an RGBAL LED engine with high CRI (>90) that offers a wide colour palette, including tuneable whites ranging from 2700 K to 10,000 K. The unit is equipped with a manual zoom from 19.6° to 35.3°, making it easy to adapt the beam angle to the room or application. Its OLED display provides a clear overview of the settings.

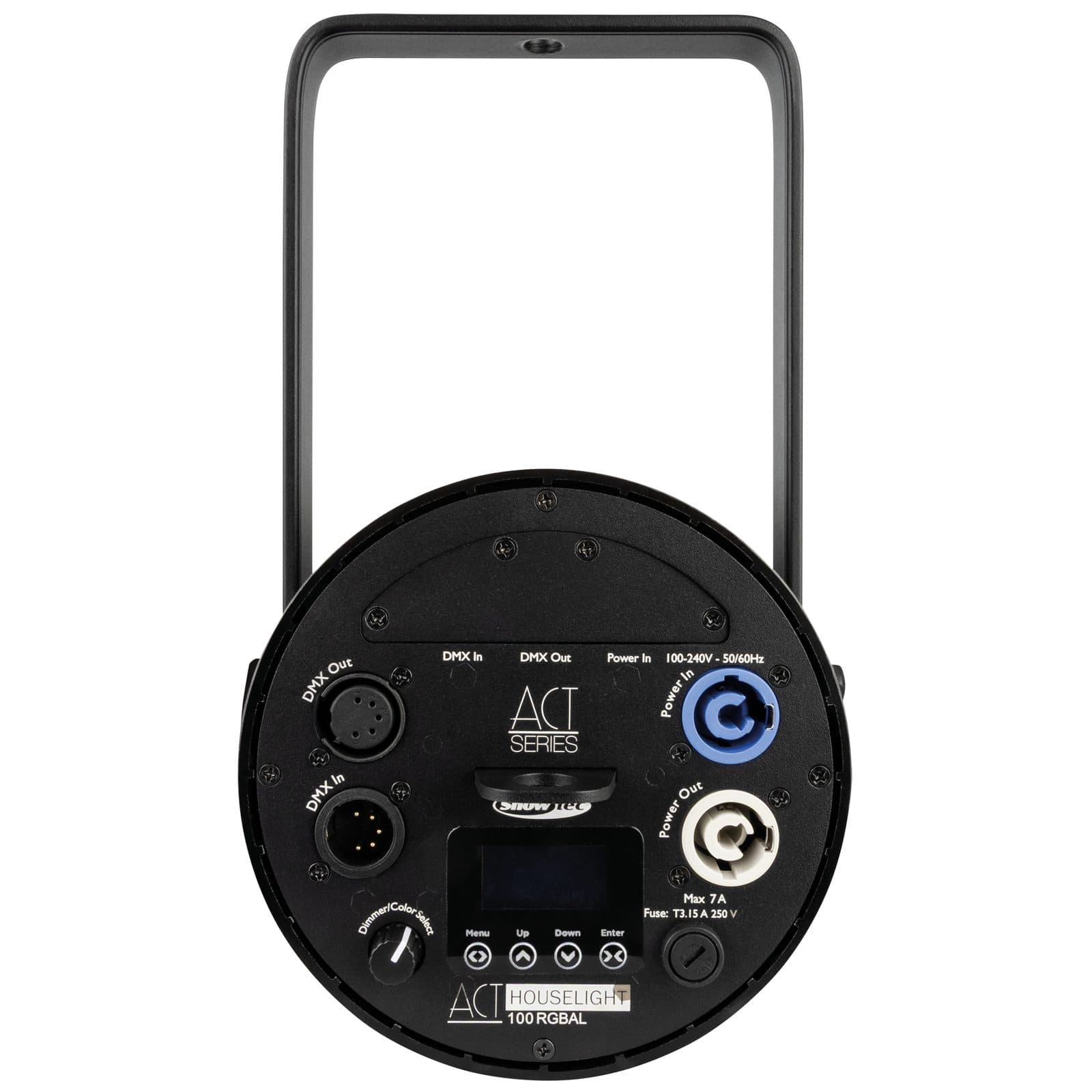

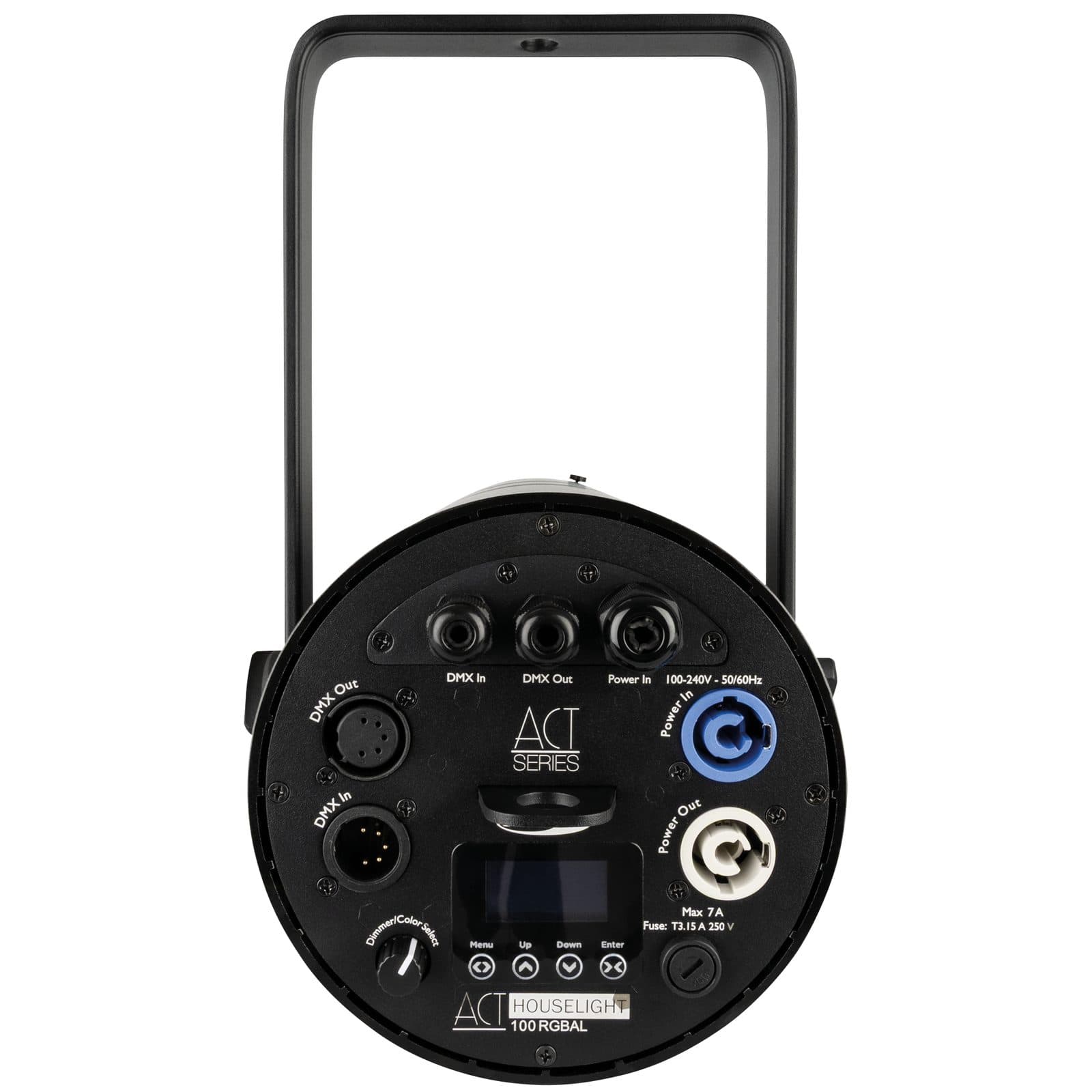

For installations, the fixture can be powered using either a standard Power Pro connector or a terminal connection, the latter offering a cleaner, more discreet finish in fixed setups. A barndoor is included for fine‑tuning the beam.
| Light Source Type | LED |
|---|---|
| Light Source Quantity | 1 |
| Light Source Power | 150 W |
| LED Colour Type | RGBAL |
| Illuminance @ 2 m | 2671 lx |
| Illuminance @ 3 m | 1187 lx |
| Illuminance @ 5 m | 427 lx |
| Luminous Flux (Total) | 1611 lm |
| Luminous Flux (Red) | 4909 lm |
| Luminous Flux (Green) | 9288 lm |
| Luminous Flux (Blue) | 2602 lm |
| Luminous Flux (Amber) | 3939 lm |
| Luminous Flux (Lime) | 9329 lm |
| CRI | 90 |
| Minimum CCT | 2700 K |
| Maximum CCT | 10000 K |
| Beam Angle Minimum (Circular) | 19.6° |
| Beam Angle Maximum (Circular) | 38.4° |
| Field Angle Minimum (Circular) | 35.3° |
| Field Angle Maximum (Circular) | 54.4° |
| Zoom Type | Manual |
| Zoom Minimum | 19.6° |
| Zoom Maximum | 34° |
| Control Mode | DMX / Manual / RDM |
| Protocols | DMX / RDM |
| Display | OLED |
| Display Size | 1.3" |
| Dim Curve | Linear / Square / I-Square / S-Curve |
| Power Supply | 120-250 V AC 50/60 Hz |
| Power Consumption | 100 W |
| Fuse | 3.15 A |
| Power Connector In | Power Pro Blue / Terminal |
| Power Connector Out | Power Pro Grey / Terminal |
| DMX Connector | XLR 5P Out |
| DMX Connector In | XLR 5P |
| DMX Connector Out | XLR 5P |
| Length (mm) | 182 mm |
| Width (mm) | 150 mm |
| Height (mm) | 405 mm |
| Weight | 5.85 kg |
| IP Rating | IP20 (indoor use only) |
| Housing | Aluminium die-cast |
| Colour | Black |
| Cooling | Forced Convection |
| Mounting Options | Bracket / Eye bolt |
| Maximum Ambient Temperature | 45 °C |
| Minimum Operating Temperature | 0 °C |
| Included Cables | Power Pro Cable |
