Name: Pixel Controller - Showtec 44510
Brand: SHOWTEC
SKU: 44510
Price: 364.54 EUR
Availability: InStock

Descrizione

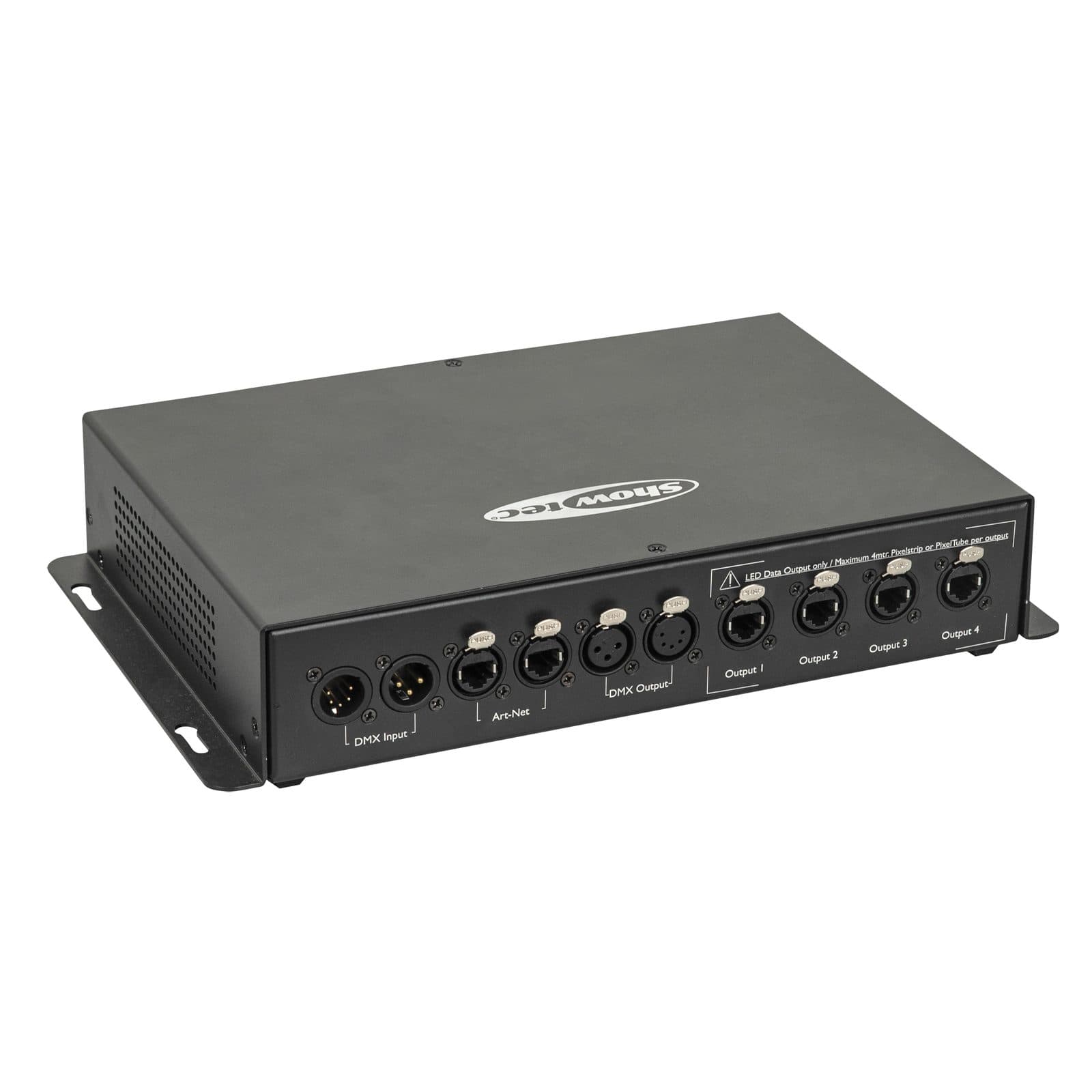

The Showtec Pixel Controller is an easy-to-use four-output RGB pixel controller with dimmer function, suitable for the management of various Pixel products, such as the Pixelstrip 20 / 40, Pixeltube 16 / 32 and Pixel Dot. This controller is not only externally controlable via DMX, Master/Slave, Art-Net and Kling-Net, but can also be used in stand-alone mode with the integrated programs available. Each output can manage up to 4 m Pixelstrip, 5 m Pixeltube and 40 Pixel Dots. When you use Art-Net, you are able to get full control of all pixels to create amazing effects.

Controller for Pixelstrip, Pixeltube and Pixel Dot
Single pixel control
Each output controls up to 4 m Strip, 5 m Tube and 40 Dots
Controllable via DMX, Art-Net and Kling-Net
Dimmer function

Control mode	Art-Net / Auto / DMX / Kling-Net / Manual / Master Slave / RDM / sACN
DMX Channels	7 / 480 / 1920
Protocols	Art-Net / DMX / Kling-Net / RDM / sACN

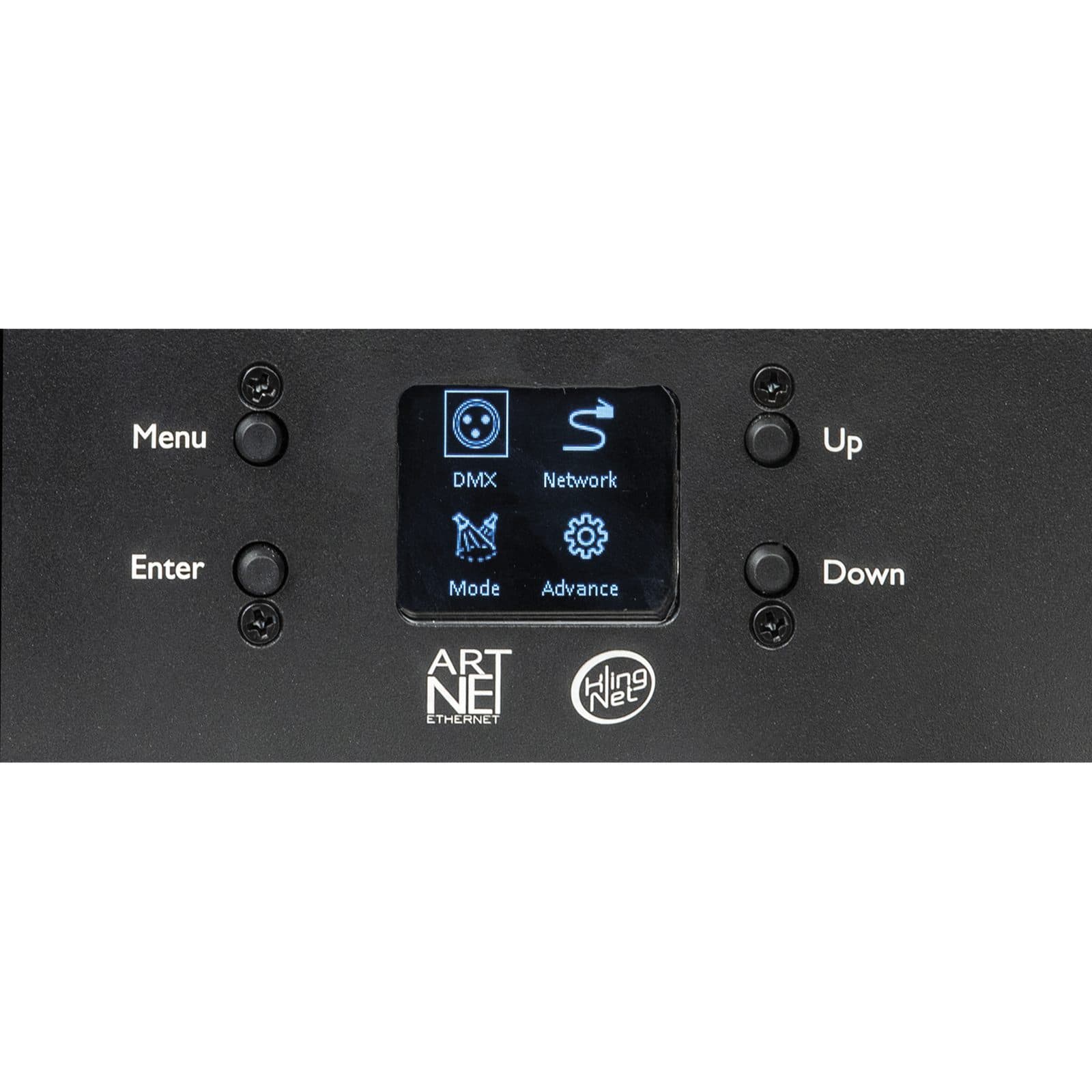

Display	OLED
Dimmer	0-100 %
Strobe	0 - 20 Hz
Feeding	100 - 240 V AC 50 / 60 Hz
Output voltage	24 V DC
Power consumption	6 W
Maximum power consumption	320 W
Power input connection	Power Pro Blue
Power connector Output	Power Pro Grey
DMX input connection	XLR 3 P / XLR 5 P
DMX output connection	XLR 3 P / XLR 5 P
Data connection	ProCat In/Out
Height (mm)	342 mm
Width (mm)	210 mm
Depth (mm)	68 mm
Weight	2.1 kg
IP Grade	IP 20 (for indoor use only)
Housing	Metal
Color	Black
Cooling	Assets
Possibility of assembly	Hook
Maximum ambient temperature	40 °C
Minimum ambient temperature	0 °C
Included cables	Power Pro Cable
