Traliccio T orizzontale PRO-30 Triangle G - T-Cross orizzontale 3 vie apex down 71cm ATU36 - Milos GT30017

The Milos PRO-30 truss is made of 50 mm alu pipe with a thickness of 2 mm and 16 mm braces. This is the most used construction system for discotheques, stages, theatres and many more applications. The PRO-30 truss is available in the following models: 2 point Step system (FS, GS, PS), 3 point triangle system (FT, GT, PT) and 4 points square system (FQ, GQ, PQ) The system elements are joined together through conical connectors and spigots. Milos offers three different coupling systems with different compatibility, shown in the overview below. All Milos PRO-30 truss systems are TÜV certified.

· F-truss compatible with Prolyte systems (Ø 27.8 mm)

· G-truss compatible with Global & Euro systems (Ø 29.0 mm)

· P-truss compatible with standard Milos truss systems (Ø 29.8 mm)

Each truss piece (length or cornerpiece) is always delivered including a complete connection-set (spigots, pins and R-springs) for one side. And the black truss we offer, is powder-coated with colour RAL9005.

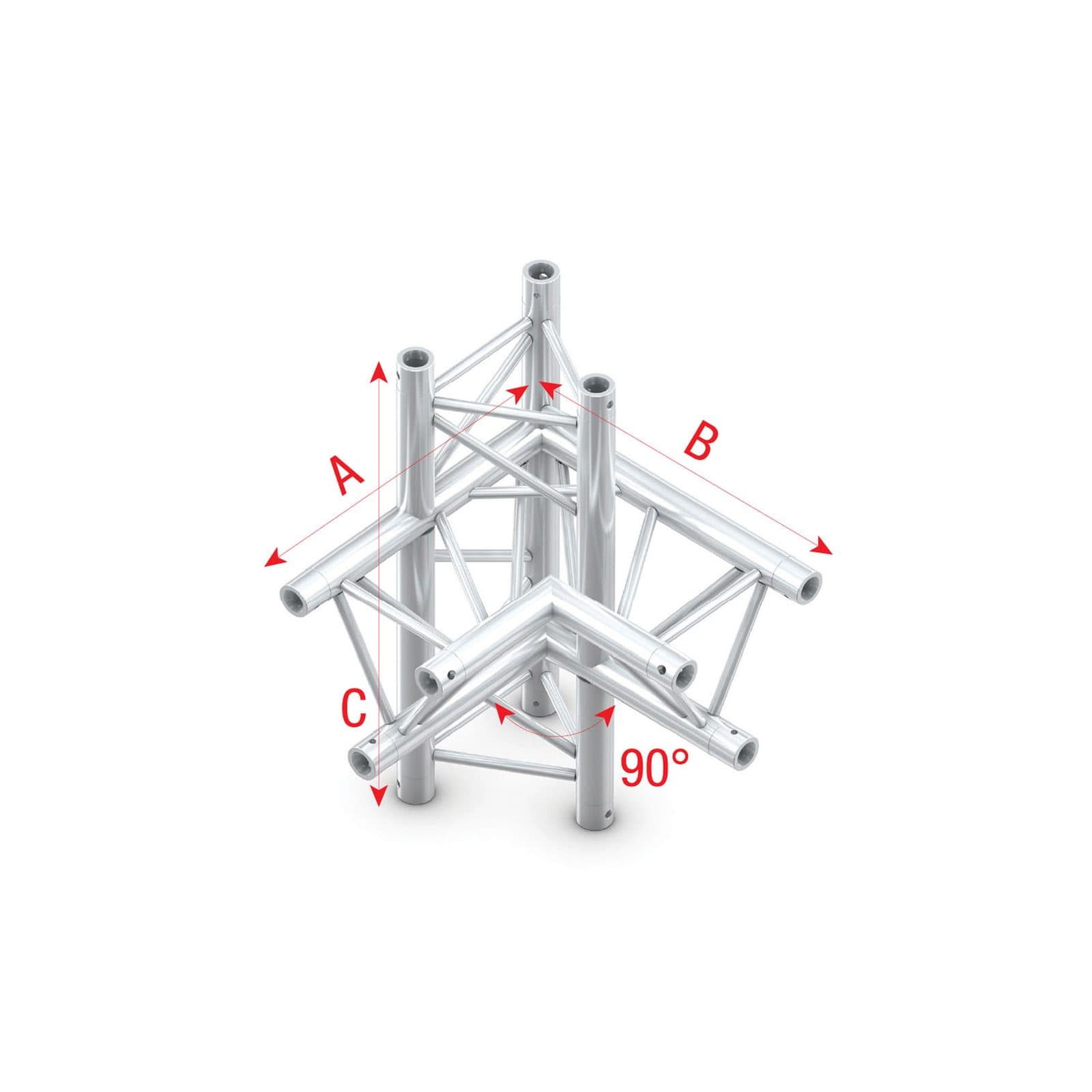

A = 710 mm

B = 500 mm

Combining truss brands must always be approved by a competent and suitably qualified third party. This party must write a risk assessment and carry out structural calculations. Use of non approved combinations is at the user’s sole risk.
