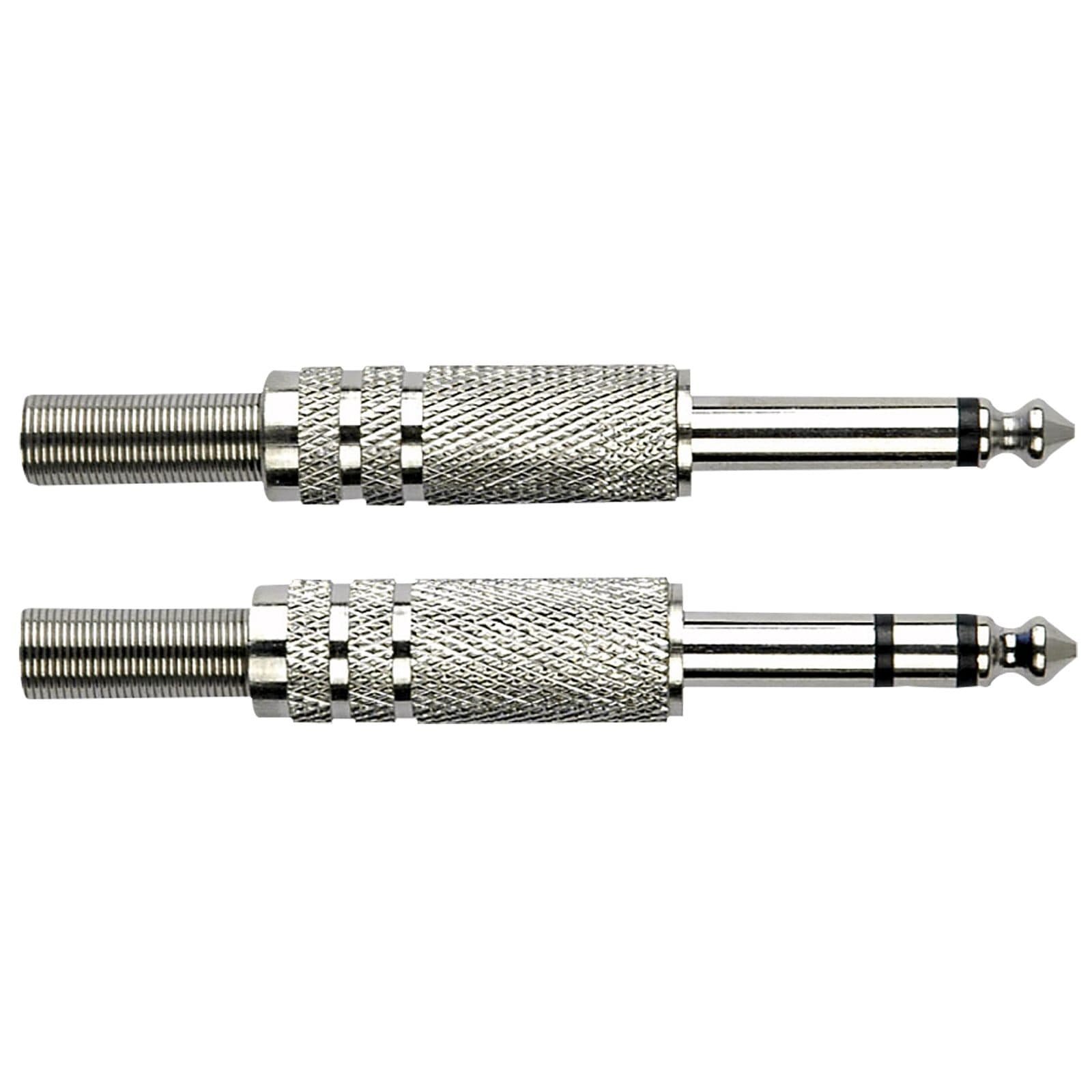

Jack plug mono con molla - DAP JMK202N

Name: Jack plug mono con molla - DAP JMK202N
Brand: DAP
SKU: JMK202N
Price: 1.40 EUR
Availability: InStock

Disponibile: 10Nuovo

Codice JMK202N

Codice EAN 8717748051738

Prezzo per 1 unità

1,40 €

1,15 € + IVA

Nickel housing

Descrizione

Flashover Voltage	500 V
Impedance	100000 Ω
Pins	2
Wire Connection	1 mm²
Maximum Wire Size	1 mm²
Maximum Wire Size AWG	18 AWG
Outer Cable Diameter	6 mm
Length (mm)	85 mm
Height (mm)	10 mm
Width (mm)	10 mm
Diameter	10 mm
Weight	0.017 kg
IP Rating	IP20 (indoor use only)
Housing	Metal
Colour	Silver
Contact Resistance	10 < mΩ
Pin Connection	Solder
Locking Device	No lock
Contact Type	Nickel plated
Maximum Ambient Temperature	50 °C
Minimum Ambient Temperature	-20 °C
