Connettore XLR 3 pin unisex per cavo - Neutrik NC3FMC

Name: Connettore XLR 3 pin unisex per cavo - Neutrik NC3FMC
Brand: NEUTRIK
SKU: NC3FMC
Price: 18.94 EUR
Availability: InStock

Disponibile: 10Nuovo

Codice NC3FMC

Codice EAN 8717748532459

Prezzo per 1 unità

18,94 €

15,53 € + IVA

Gold contacts - nickel housing

Descrizione

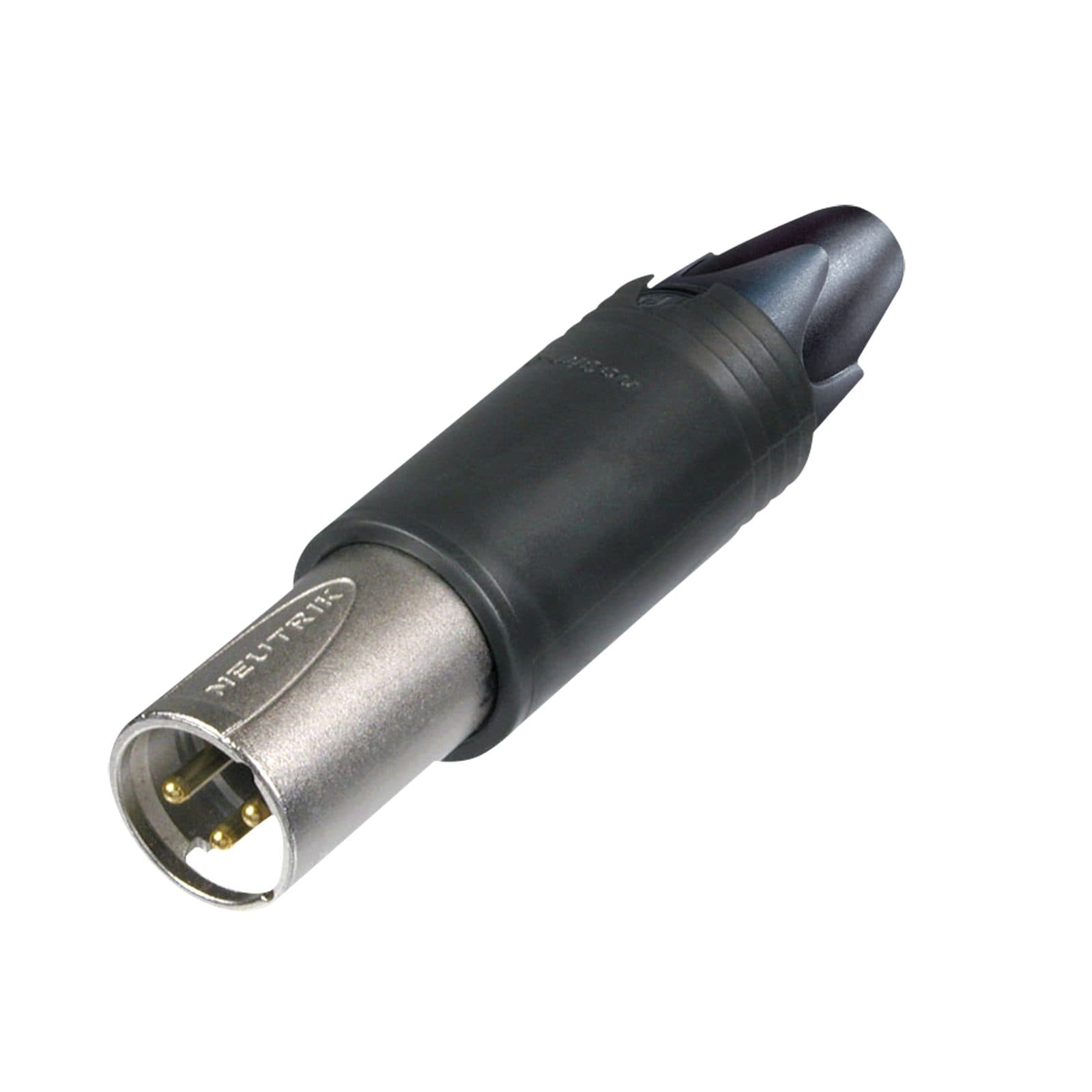

The NC3FM-C is an XLR cable connector which offers an easy selectable gender conversion by sliding the housing back and forth. This unique design with all the benefits of the Neutrik XX series eliminates the need for adapters and is ideal as an item in your emergency kit.

3-Pin male and female connector in one housing
Switch gender without tools
Properties of Neutrik XX series (gold plated contacts)

Rated Current (A)	16 A
Brand Connector 1	Neutrik
Pins	3
PCB Mount	No
Maximum Wire Size	2.5 mm²
Outer Cable Diameter	8 mm
Length (mm)	99.5 mm
Diameter	23.5 mm
IP Rating	IP40
Material	Brass / Polyamide / Zinc
Housing	Zinc
Colour	Silver
Bushing Colour	Black
Contact Resistance	3 < mΩ
Pin Connection	Solder
Locking Device	Latch
Contact Type	Brass
Maximum Ambient Temperature	80 °C
Minimum Ambient Temperature	-30 °C
