Booster-4 Install DIN Rail DMX/RDM - Showtec 50795

Name: Booster-4 Install DIN Rail DMX/RDM - Showtec 50795
Brand: SHOWTEC
SKU: 50795
Price: 201.79 EUR
Availability: InStock

Disponibile: 10Nuovo

Codice 50795

Codice EAN 8717748492920

Prezzo per 1 unità

201,79 €

165,40 € + IVA

DIN Rail

Descrizione

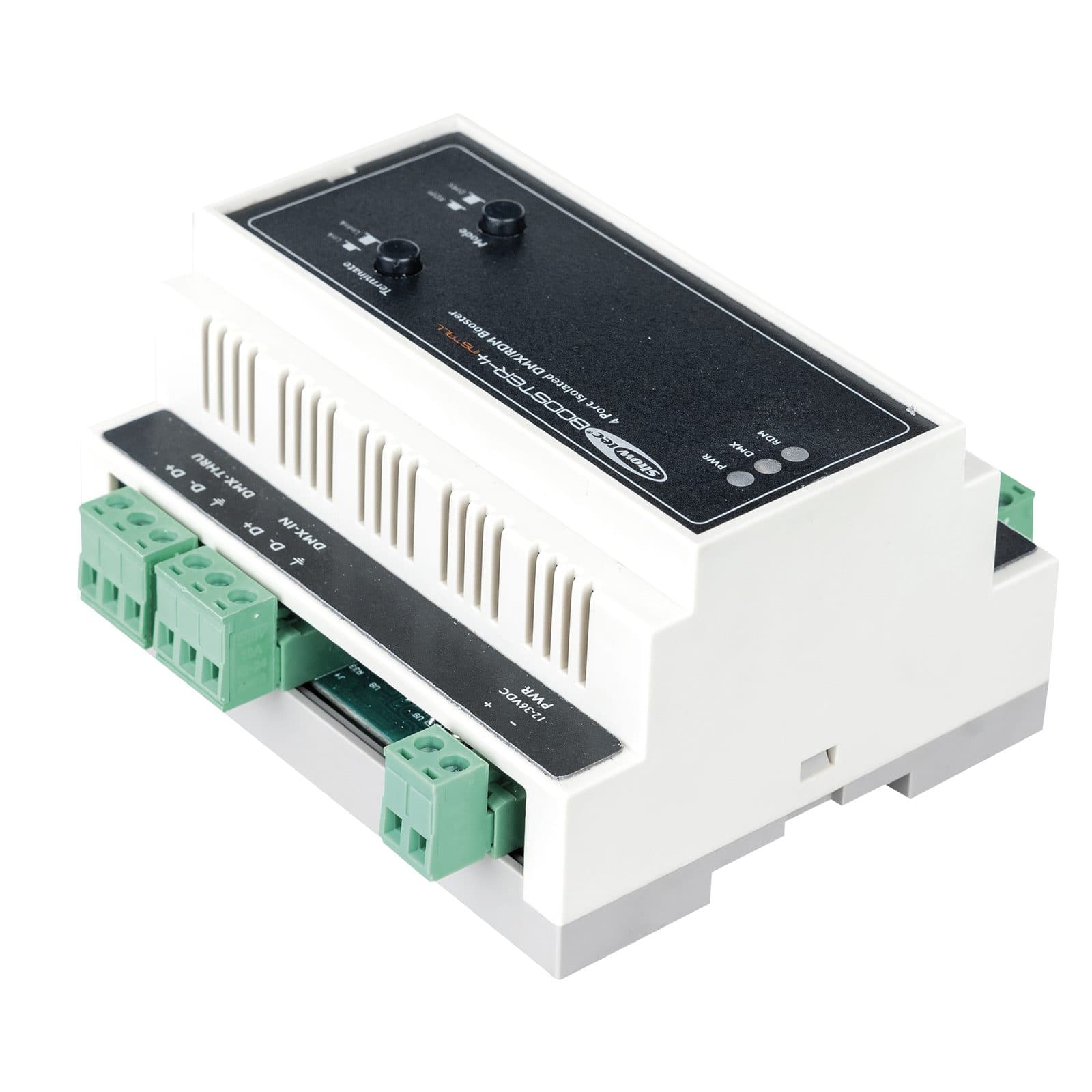

The Showtec Booster-4 Install is the ideal compact fixed-installation booster for you. All connections are easy connectable with the plug-in Phoenix terminals, and both inputs as all outputs are optically isolated to prevent any interference from getting hold of your signal. The din-rail mounted Booster distributes both DMX and RDM and is ideal for network system integration projects.

Wide range DC input voltage
Fully isolated inputs and outputs
RDM compliant
DIN EN43880 form factor
DIN EN60715 rail system

Power Supply	12-36 V DC
Power Consumption	9 W
Power Connector In	Phoenix
DMX Connector	Phoenix In/Out
DMX Connector In	Phoenix
DMX Connector Out	Phoenix
Length (mm)	106 mm
Width (mm)	87 mm
Height (mm)	58 mm
Weight	0.18 kg
IP Rating	IP20 (indoor use only)
Housing	Plastic
Colour	Grey
DIN Rail Spacing	35 mm
Maximum Ambient Temperature	40 °C
Minimum Ambient Temperature	0 °C
Minimum Operating Temperature	0 °C
Control Mode	DMX
Protocols	DMX / RDM
Universes	1
